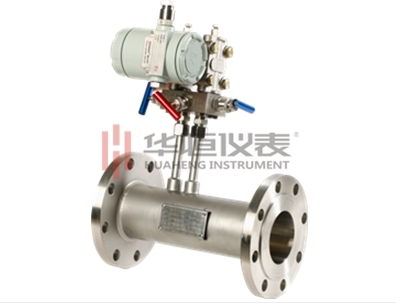

V錐形流量計是一種根據質量守恒定律和能量定恒定律來測量管內流體流量的差壓式儀表。它創新性地利用懸掛在管道中心處的V型錐作為節流件，這一結構具有自整流和自清潔的獨特優點，是一種用途廣泛的新型儀表。



　　The V-cone flowmeter is a differential pressure instrument that measures the flow of fluid in the pipe according to the law of conservation of mass and the law of energy.It innovatively uses the V-shaped cone suspended in the center of the pipeline as a throttle.This structure has the unique advantages of self-rectification and self-cleaning,and is a new type of instrument with a wide range of uses.



　　V錐流量計的具有以下特點：



　　The V cone flowmeter has the following characteristics:



　　1.V錐流量計自清潔功能，當流體經過V型錐時，管道中心流速變慢，管壁附近的流速加快，使污垢不易沉積在節流件上，有利于測量的準確與穩定。



　　1.The self-cleaning function of the V-cone flowmeter.When the fluid passes through the V-cone,the flow velocity in the center of the pipe slows down,and the flow velocity near the pipe wall is accelerated,so that dirt is not easy to deposit on the throttle,which is beneficial to the accuracy and stability of the measurement.



　　2.V錐流量計自整流功能，V型錐這種能使管道中心流速變慢，管壁附近的流速加快的特點，有效改善流體流速的分布，達到自整流作用，極大縮短前后直管長度，只要達到前0-3DN，后0-1DN即可。



　　2.The self-rectifying function of the V-cone flowmeter.The V-cone has the characteristics of slowing down the flow velocity in the center of the pipe and speeding up the flow velocity near the pipe wall,effectively improving the distribution of fluid flow velocity,achieving self-rectification and greatly shortening the front and rear straight pipes.Length,as long as it reaches the first 0-3DN and the last 0-1DN.



　　3.耐磨性能好，長期穩定性好，測量重復性高。



　　3.Good wear resistance,good long-term stability,and high measurement repeatability.



　　4.特殊結構壓損小，其壓力損失為孔板1/3-1/5。量程比為10：1。



　　4.The pressure loss of the special structure is small,and the pressure loss is 1/3-1/5 of the orifice plate.The turndown ratio is 10:1.



　　5.特殊結構適合測量低靜壓，低流速的流量。



　　5.The special structure is suitable for measuring low static pressure and low flow velocity.



　　6.由于錐形流量計的獨特結構，在很多情況下，它被作為混合器使用。



　　6.Due to the unique structure of the cone flowmeter,it is used as a mixer in many cases.



　　7.適用工作溫度高850度，壓力最大42Mpa，若選用特殊材質，范圍更高。



　　7.The applicable working temperature is 850 degrees,and the maximum pressure is 42Mpa.If special materials are selected,the range is higher.



　　8.為方便用戶使用，我公司V錐流量計有一體與分體結構。



　　8.For the convenience of users,our company's V-cone flowmeter has an integrated and split structure.



　　9.智能一體V錐流量計，采用先進的電路設計，功能強大，微功耗，大屏幕液晶屏顯示流量信息，內部先進存貯器保證數據安全。



　　9.The intelligent integrated V-cone flowmeter adopts advanced circuit design,powerful functions,low power consumption,large-screen LCD screen displays flow information,and advanced internal memory to ensure data security.



　　10.一體化V錐流量計系統，可以使用電池供電與外24VDC供電，輸出4-20mA,脈沖信號，有HART協議。



　　10.The integrated V cone flowmeter system can use battery power supply and external 24VDC power supply,output 4-20mA,pulse signal,and have HART protocol.



　　以上就是關于“V錐形流量計優點—V錐流量計廠家”詳細概述，如有關于流量計方面的問題咨詢，請聯系我們！



　　The above is a detailed overview of"V-cone flowmeter advantages-V-cone flowmeter manufacturers".If you have any questions about the flowmeter,please contact us！
